Membrane For RO Plant System

The conventional low pressure brackish water reverse osmosis membrane element is suitable for the desalination of brackish water with salt concentration below 10000mg/L, It has the characteristics of low operating pressure, high desalination rate and large flux.

Send Inquiry
Product Description

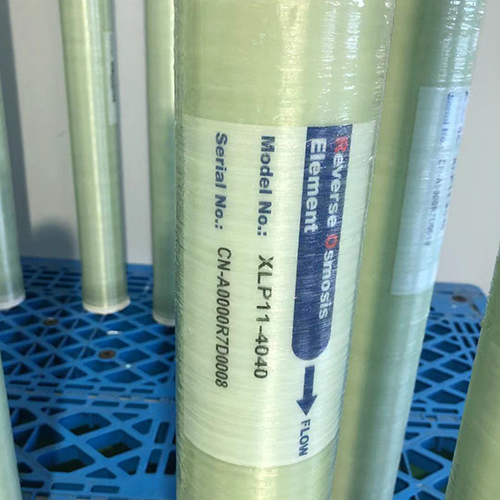

Membrane For RO Plant System



1. Product Introduction Of Membrane For RO Plant System



The conventional low pressure brackish water reverse osmosis membrane element is suitable for the desalination of brackish water with salt concentration below 10000mg/L, It has the characteristics of low operating pressure, high desalination rate and large flux, can be widely used in pure water and ultra-pure water manufacturing, but also can be used in food concentration and metal recovery and other industries.



2. Product Specification Of Membrane For RO Plant System



Product Model

Active Membrane

Area ft2(m2)

Permeate flow

Rate GPD(m3/d)

Minimum Salt

Rejection (%)

Stabilized Salt

Rejection (%)

Feed Spacer

mil

BW30-8040LP

400(37)

10500(39.7)

99.3

99.5

28/34

BW60-8040LP

400(37)

10500(39.7)

99.5

99.6

28/34

BW30-4040LP

90(8.4)

2400(9.1)

99.3

99.5

28

BW60-4040LP

90(8.4)

2600(9.8)

99.3

99.6

28



NOTE:Test Condition:2000 ppm NaCl at 25℃ (77 ℉ ), 225psi, PH=7, Recovery=15%.



Among:

BW 30-8040ULP/XLP, BW 30-4040ULP/XLP, Test Condition: 1500 ppm NaCl at 25℃ (77 ℉ ),150psi, PH=7, Recovery=15%

BW 60-8040ULP/XLP, BW 60-4040ULP, Test Condition: 2000 ppm NaCl at 25℃ (77 ℉ ),150psi, PH=7, Recovery=15%

BW 60-4040XLP, Test Condition: 2000 ppm NaCl at 25℃ (77 ℉ ), 125psi, PH=7, Recovery=15%



Product Size

4 inch and 8 inch membrane for RO plant system



Product Model

A

B

C

D

Tolerance

BW30/60-8040

40"(1016mm)

7.9"(200mm)

1.125"(28.6mm)

1.05"(26.7mm)

1.0mm

BW30/60-4040

40"(1016mm)

3.9"(100mm)

0.75"(19mm)

1.05"(26.7mm)

1.0mm



4 inch and 8 inch membrane for RO plant system



Our company has passed ISO9001, and HuaYu brand FRP tanks have earned more than 10 patents, the provincial award of high-tech and have passed NSF and CE certification. While based upon domestic market, our products are widely sold to the whole world etc.



3. Deliver, shipping And Serving Of Membrane For RO Plant System



Payment Terms: L/C; Western Union: T/T

Shipping: By Sea.



Enterprise Spirit: quality, service, profession, focus. And we promise to provide our products with good quality and we also provide OEM and ODM service for all of our customers.



4. FAQ



1). Q: Do you accept small order and what's your MOQ?

     A: Yes, we accept trial order. MOQ is 20FT container.



2). Q: What is your payment terms?

     A: T/T, L/C Western Union, Trade Assurance etc.



3). Q: Can you ship to my country?

     A: Yes, no problem. Please tell me your destination and post code. I'll check your shipping.



4). Q: I want to more product, how can l get latest cataloque for reference?

     A: You can contact us by Trade Manager or Email. We will give you our latest catalogue according to your information.



5). Q: How can you guarantee the quality and the warranty?

     A: Quality control of raw material is 100% inspection before producing. We will do fully checking before packing All HY FRP tanks had 3 years warranty.
